RoFT

RoFT

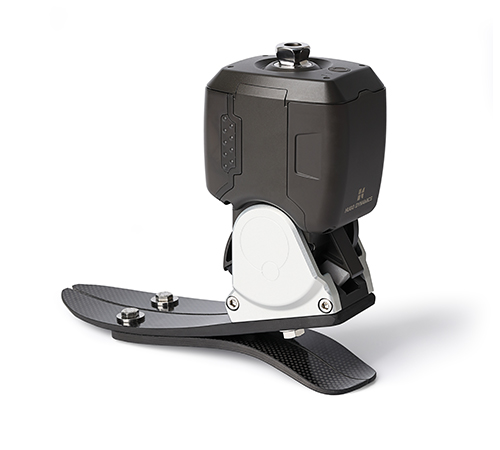

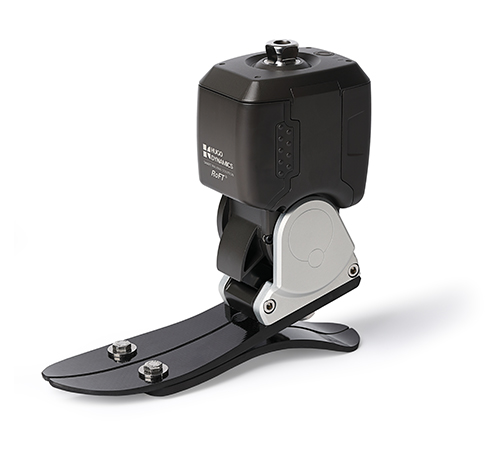

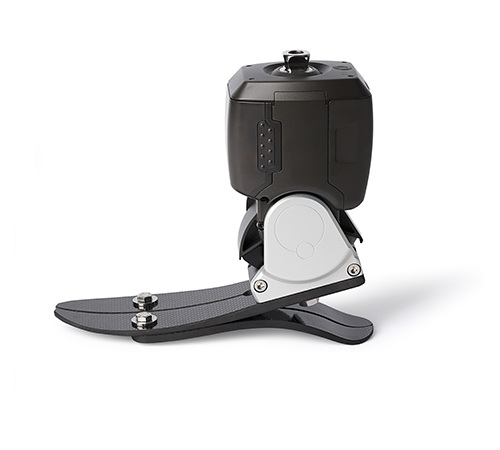

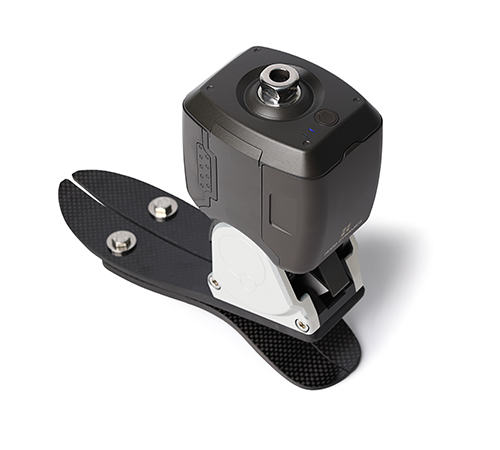

RoFT reproduces the movement of the ankle joint based on an electronically controlled integrated sensor system. ​The ankle drive motor provides the driving force to push the ground, ​and the unique patented elastic body is added to improve shock absorption and ​energy recovery.

  • Product Type Electronically controlled prosthetic limbs that provide footsteps propulsion
  • Activity Level 3​
  • Maximum Weight 125KG​

User Experience

Flat walking
Ramp walking
Ramp walking

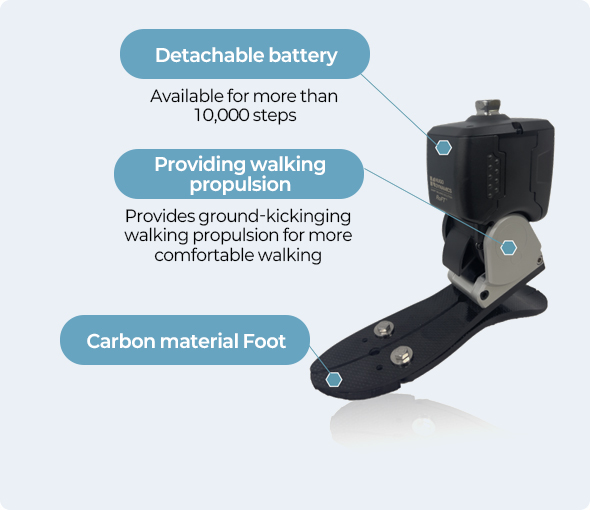

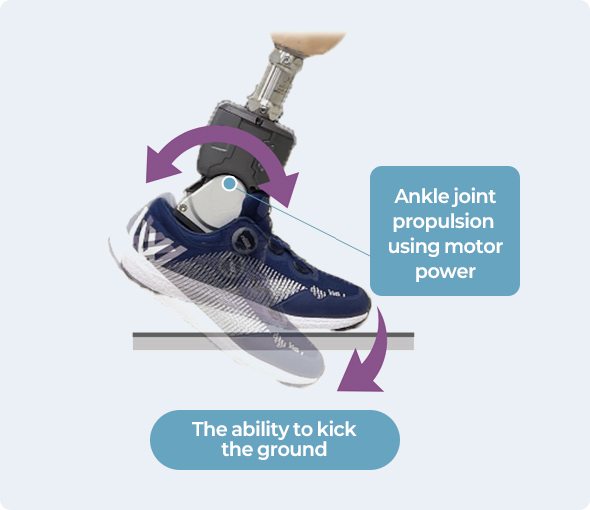

Function

Information

Category3
Supply powerbattery ( Li-ion 3,500mAh x 6 cells )
Supply power19V ~ 25.2V
Configurationcontroller, motor, battery
Size (WxDxH)185 x 73 x 198mm
Weight1,500g (excluding foot cover)
MaterialAL6061, SUS304, ABS
User maximum weight125kg
  • Domestic patent application: No. 2020-0187235
  • International patent application: No. PCT/KR2021/019502
